Automated Test and Measurement Systems: Cut Errors, Test Faster

A customer returns a batch. Your team pulls out the test records and finds two missing entries and one reading that looks overwritten. Now nobody can prove the product was tested properly.

This is the real cost of manual testing. It is not only slow. It leaves gaps that show up later, when fixing them is expensive.

Automated test and measurement systems close these gaps. They test every unit the same way and save every result. This guide explains how they work, where they fit, and what to check before you invest in one.

What Is an Automated Test and Measurement System?

It is a setup that tests a product with very little human effort. Sensors measure values such as voltage, current, pressure, flow, temperature or torque. Software compares each value with your limits and shows a clear PASS or FAIL. The result is saved with the date, time and serial number.

The operator only loads the product and presses start. The system does the rest.

What Goes Wrong With Manual Testing

If you run a plant, you have probably seen these:

• Two operators, two readings. One reads the gauge from the front, the other from the side. The same product gets different results.
• The test is skipped when the line is busy. At the end of a shift with a target to meet, a test step gets rushed or missed.
• Records are written after the test, not during it. Numbers are entered from memory or rounded off.
• The fault is found late. A bad fixture or drifting sensor goes unnoticed for hundreds of units.
• Audit week becomes a search mission. Customers ask for reports, and the team spends days digging through files.

An automated system does not skip steps, does not round numbers, and does not forget to save.

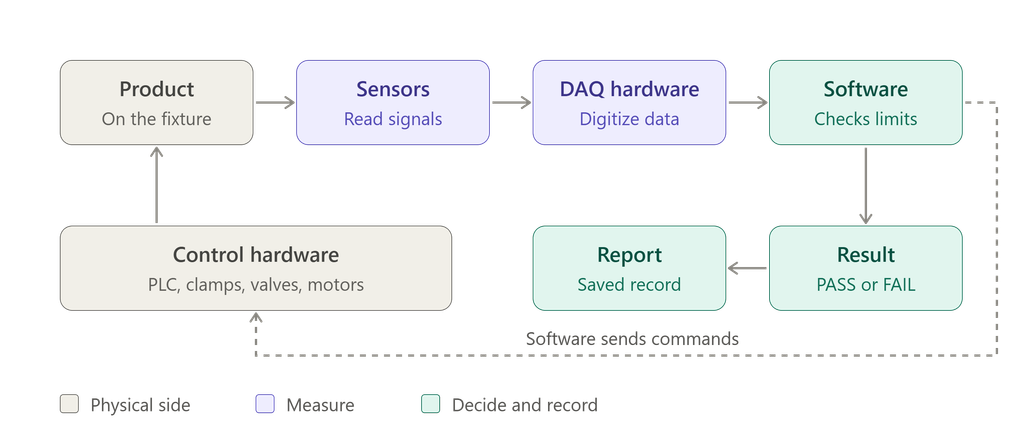

The Four Building Blocks

1. Sensors. They touch the product and turn physical signals into electrical ones. Examples are pressure transducers, current sensors, thermocouples and flow meters.

2. Data acquisition (DAQ) hardware. It collects those signals and converts them to digital data. Its accuracy sets the limit of your whole measurement. A poor DAQ card means poor results, however good the software is.

3. Control hardware. PLCs, relays, clamps, valves and motors handle the physical side. They hold the product, apply power, open valves and move parts during the test.

4. Software. This is the brain. It runs the steps in order, reads the data, checks limits, shows live results and generates reports. Many industrial test systems are built in NI LabVIEW, because it connects easily with measurement hardware and lets engineers change test steps without rebuilding everything.

Example: How a Pump Gets Tested Automatically

Take an industrial pump that must be tested before dispatch. In a manual setup, an operator connects it to a test bench, opens valves by hand, reads pressure and flow from separate gauges, and notes down the current.

In an automated setup:

1. The operator places the pump, scans the barcode and presses start.
2. The system fills the line, sets valve positions and starts the pump.
3. It reads flow, pressure, motor current and vibration at the same time.
4. It plots the pump curve and checks it against the specification.
5. The screen shows PASS or FAIL, and the report is saved against that serial number.

Nothing here depends on how careful the operator is that day. We build this kind of setup through our industrial pump testing system.

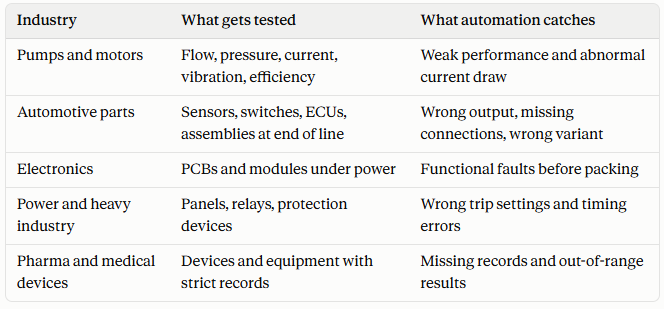

What Can Be Tested Automatically?

If your product has a specification, it can be tested automatically.

Benefits for Plant Heads and Project Managers

• Same result every shift. Quality does not depend on who is on duty.
• Faster throughput. Testing no longer waits for reading, calculating and writing.
• Mistake-proofing built in. The system can stop a unit from moving ahead if a step fails or is skipped. This is called poka yoke, and it keeps defective parts away from the customer.
• Full traceability. If a complaint comes in, you can pull the exact test record for that serial number in minutes.
• Early warning from data. If test values slowly drift, you can see it and act before a full batch fails.
• Smarter use of people. Skilled operators can move from repeated checking to work that needs real judgment.

Questions to Ask Before You Buy

Do not start with price. Start with these:

1. Have we listed every parameter, range and accuracy? Vendors cannot quote correctly without this.
2. What cycle time do we need? A system for 20 units an hour is built differently from one for 200.
3. Who can edit the test steps later? If only the vendor can change them, every new product model becomes a new project and a new bill.
4. Can it talk to our other systems? Check links with PLC, SCADA, MES or ERP.
5. What will the report look like? Agree on the format with your quality team and customers early.
6. Who supports it after delivery? A test system should run for years. Ask about service response, spare parts and upgrades.

Mistakes We See Often

• Buying a ready-made tester for a custom product. Standard machines often cannot reach your actual test points.
• Not planning calibration. Results are only as good as the last calibration. Fix a schedule from day one.
• Skipping operator training. Even a simple screen needs a short session so that people trust and use the system properly.
• Ignoring the next product. Your product will change. Choose a design that can be modified without starting over.
• Choosing only on price. A cheaper system that stops often will cost you more in lost production.

How Puja Controls Can Help

Puja Controls builds test and measurement systems around your product and your line. Our team works with NI LabVIEW, data acquisition, hardware integration and PLC-based control, and supports projects across India and abroad.

We start by understanding what you need to test. Then we design the solution, build a prototype, validate it, and deliver it with after-sales support. If you already have an old system, we can also upgrade or modify it instead of replacing it.

Explore our test and measurement automation, automated test equipment and data acquisition systems services to see what we can build for you.

Frequently Asked Questions

Conclusion

Automated test and measurement systems give you consistent testing, faster output and records you can stand behind. For a plant head or project manager, that means fewer customer complaints and no panic when a report is asked for.

Start with a clear list of what you need to test and what output you need. Then speak to a team that can build around your process.

Want to discuss your testing requirement? Contact Puja Controls for a free consultation.
